American Flag Proportions

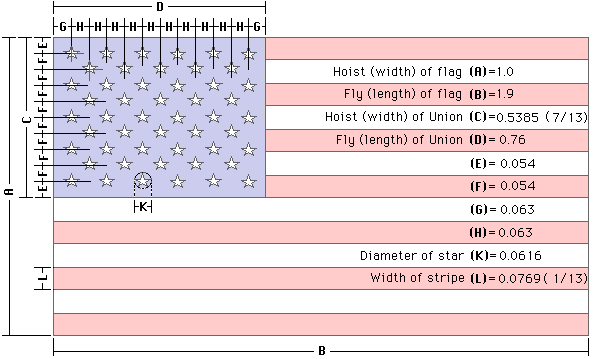

Standard Proportions For The United States Flag

Standard Proportions

Hoist (width) of flag (A) 1.0
Fly (length) of flag (B) 1.9
Hoist (width) of Union (C) 0.5385 (7/13)
Fly (length) of Union (D) 0.76
(E) 0.054
(F) 0.054
(G) 0.063
(H) 0.063
Diameter of star (K) 0.0616
Width of stripe (L) 0.0769 ( 1/13)

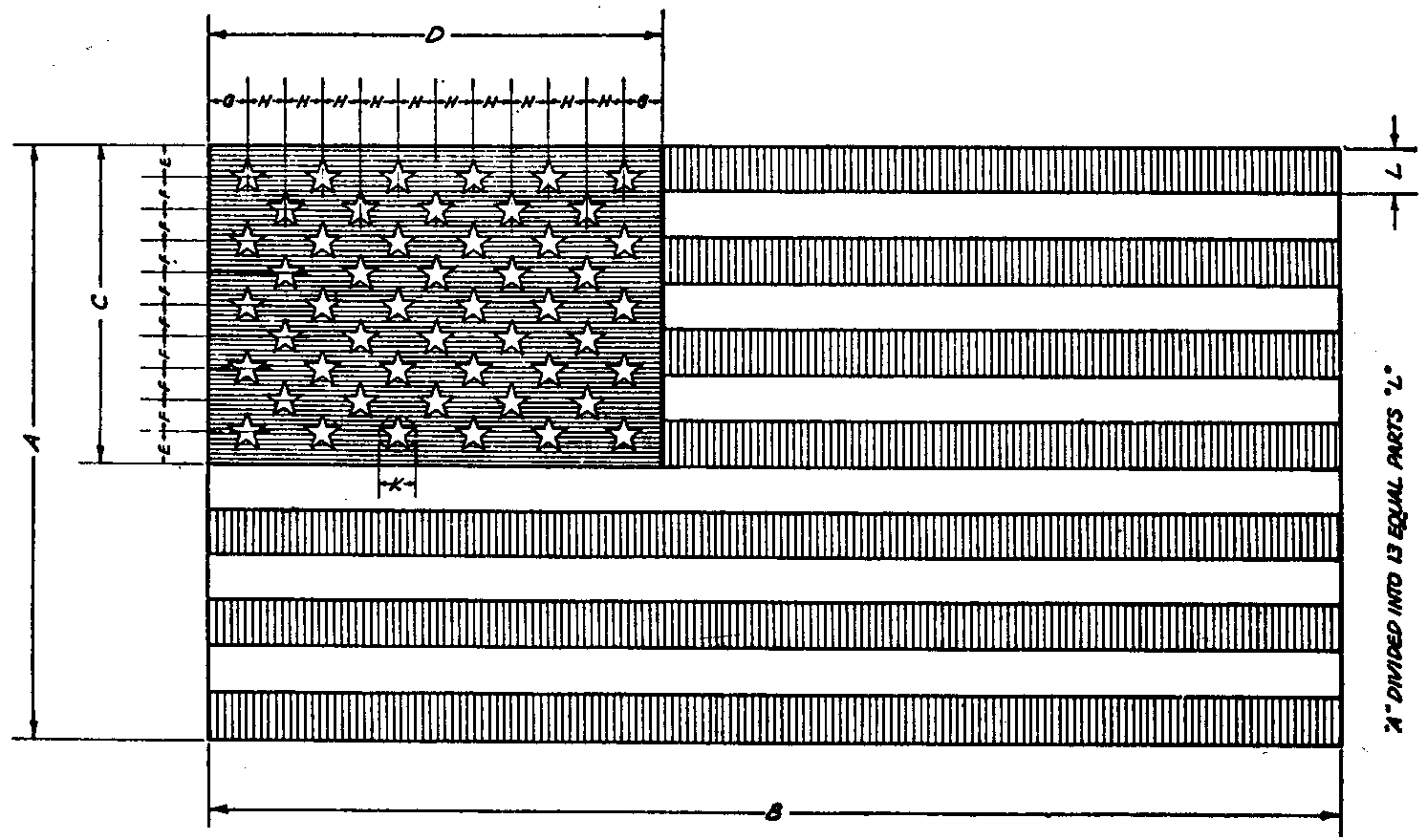

View the Government drawing (45k gif 1493 pixels w x 879 pixels h) specifying the Flags dimensions.
